Profile

Specification:
1. SUS304 side cover
2. Perspex top cover
3. ALU 6061 for rotary plate.
4. Motor driver with adjustable speed.

Specification of two way feeder module:
1. Piezo feeder with tracking length 230mm.
2. Piezo controller (AC 240V,50-60Hz)
3. ALU 6061 linear tracking with hard anodize finishing.
4. White delrin area for units pick up.
5. Mild steel base plate with blackening finishing.
6. Units quick clearing area for conversion of units.

Specification:
1. Polyurethane coating(green).
2. Thickness of coating around 0.5 mm.

Function:
1. Prevent feeding units scratches
2. Better appearance.
3. Increase life span of bowl.
4. Noise reduction(for feeding metal units)

Specification:
Material: Mild steel structure base and enclosure box.with perspex cover at top.
Finishing: Powder coating
Internal :Sound proof insulation foam
Others: Caster wheel and levelling stand

Vibrator Bowl with Structure base module
 Specification of bowl module:
1. Coil vibrator diameter 300mm with cylindrical top bowl diameter 300mm. 2. Polishing surface for top bowl.
3.Belting type finishing at internal bowl.
4.Quick opening for unit clearing purpose when changing models.
5. Coil controller (AC240V,50-60Hz)

 Specification of in-line module:
1. Gravity chute concept with coil feeder(AC 240V,50-60Hz)
2. SUS304 Tracking length of 300mm.
3. Overflow sensor .
4. Adjustable height.

 Specification of structure base module:
1.Square hollow pipe mild steel with base plate.(Powder coating RAL7035)
2. Perspex cover at top.
3. Side opener for cleaning purpose.
4. Levelling stand for height adjustable and caster wheel attach together.

Specification of bowl module:
1. Coil vibrator diameter 380mm with cylindrical top bowl diameter 380mm.
2. Polishing surface for top bowl.
3. Coil controller (AC240V,50-60Hz)

Specification of in-line module:
1. Coil feeder with controller(AC240V,50-60Hz)
2. SUS304 Tracking length of 500mm.
3. Overflow sensor .
4. Adjustable height.

Specification of structure base module:
1.Square hollow pipe mild steel with base plate.(Powder coating RAL7035)
2. Sound proof enclosure with insulation form inside.
3. Perspex cover at top.
4. Side opener for cleaning purpose.
5. Levelling stand for height adjustable and caster wheel attach together.

Specification of bowl module
1. Coil vibrator size diameter 120mm with cylindrical bowl sizing diameter 120mm.
2. Polyurethane coating (Blue) at top bowl.
3. Coil controller (AC 240V,50-60Hz)
4. Quick clearing units slot for unit conversion.

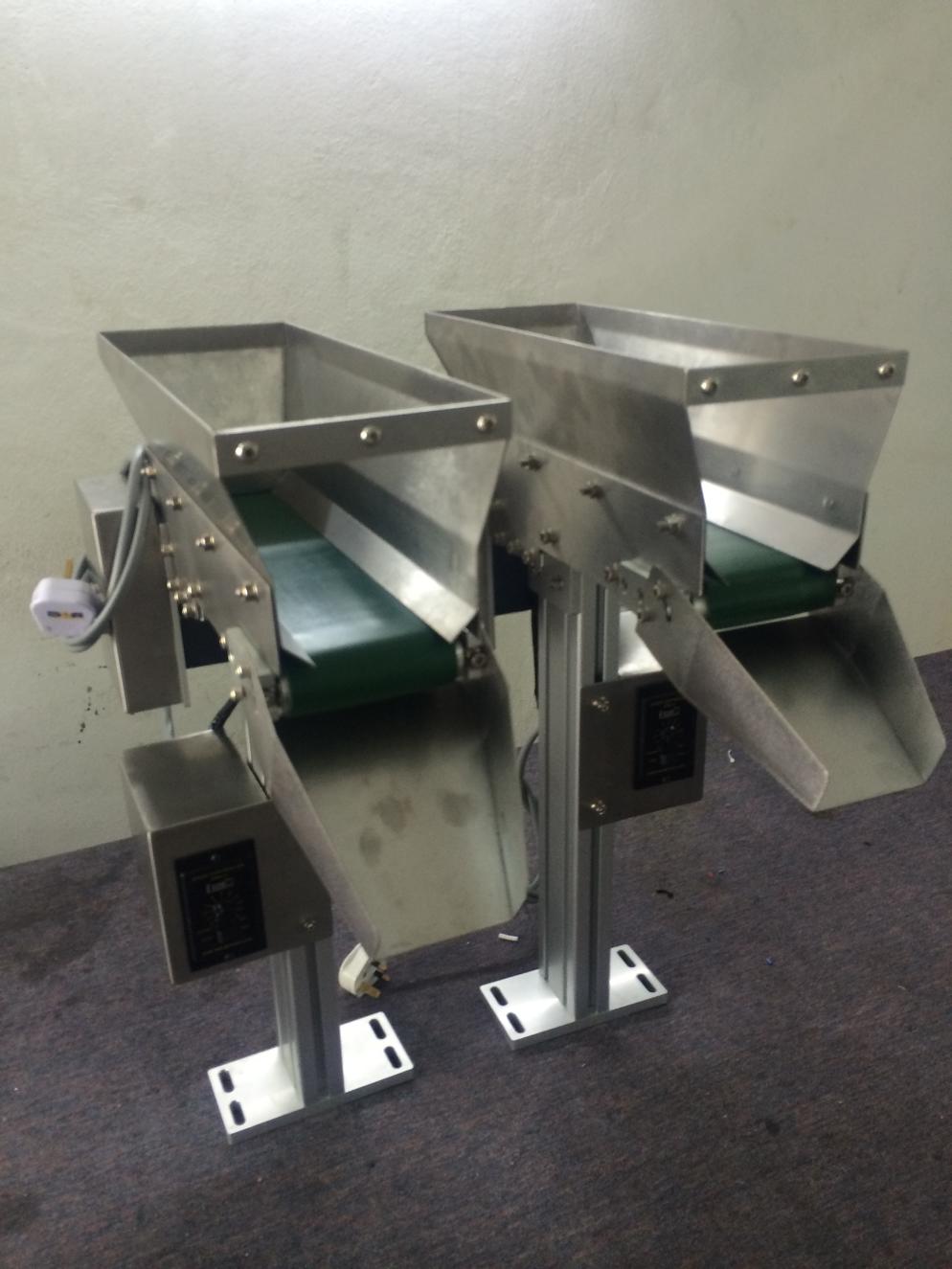

Specification:
1. SUS304 Hopper bin and chute with polishing surface.
2. PVC Belt type conveyor come with speed control motor.
3. Profile 40x40 structure base.
4. System control by PLC system.
